ISSF World Rankings Scraper using GitHub Actions

Posted by Michael Knott on Sun 26 March 2023

ISSF World Rankings

The ISSF website provides a page that lists the current World Rankings for each event. For example, this link shows the World Rankings for Men's 10m Air Rifle. The ISSF only provides the latest World Rankings. With each update the previous World Ranking data is no longer available. I wanted to scrape the World Rankings on a weekly basis to track the performance of athletes I support. Having historical data would also be useful for future analysis.

I created a Python script to scrape, parse and store data for each of the 12 Olympic Shooting events. I then needed a way to run the script on a weekly basis. At first I used a Deepnote environment due to the simplicity of setting up scripts to run on a schedule. But, I wanted to find a way to utilise my existing local development setup of VS Code, Git and GitHub. After reading a blog post by Simon Willison, I realised I'd be able to use GitHub Actions to achieve this.

GitHub Actions

GitHub Actions allows the creation of workflows triggered by events. Each workflow consists of one or more jobs, each containing steps that perform an action or run a shell command. In my case I wanted to create a workflow that runs a Python script on a weekly basis.

You configure workflows in a YAML file and save it at the root of your project/GitHub repo in a .github/workflows directory. I named my workflow file schedule.yaml. This created the following filepath for my workflow:

issf_world_rankings
├── .github
    └── workflows
        └── schedule.yaml

The first element of the schedule.yaml file should define the name of the workflow. I called my workflow Schedule ISSF Scraperand mapped it to the name key using the following syntax:

# schedule.yaml

name: Schedule ISSF Scraper

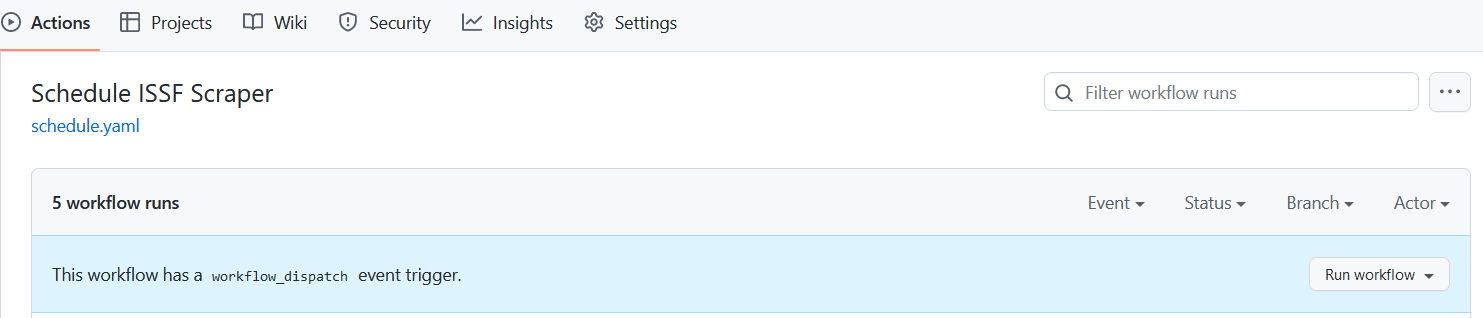

The next step is to define the event that will trigger the workflow. GitHub Actions provides multiple events that can be used as triggers. For this project I utilised workflow_dispatch and schedule. The workflow_dispatch event allows you to manually start the workflow from the actions tab of your GitHub repo (see run workflow button in the image below).

Workflow Dispatch

The schedule event triggers a workflow to run at a scheduled time using cron syntax. I scheduled my workflow to run at 09:27 every Friday. I mapped both events to the on key in the schedule.yaml file:

# schedule.yaml

on:
  workflow_dispatch:
  schedule:
  - cron: "27 09 * * 5"

Defining the job or jobs associated with the workflow comes next. For this project I have a single job with the id scrape_data to which I map the jobs configuration data. Each job runs on it's own runner (a hosted virtual environment). You define the type of operating system for the runner using the runs-on key. In this case I've defined the job to run on the latest version of Ubuntu:

# schedule.yaml

jobs:
  scrape_data:
    runs-on: ubuntu-latest

Each job consists of several steps that run in sequential order and perform an action or shell command. An action is a reusable program that performs a specific task. In the YAML workflow file you map actions to the uses key. Actions are available at GitHub Marketplace or custom actions can be created using the following documentation. A shell command is a instruction to the runner's operating system. In the YAML workflow file you map shell commands to the run key.

My scrape_data job has six steps nested within the steps key:

steps:
      - name: Checkout code
        uses: actions/checkout@v3
        with:
          fetch-depth: 0
      - name: Set up Python 3.11
        uses: actions/setup-python@v2
        with:
          python-version: "3.11"
      - name: Install dependencies
        run: pip install -r requirements.txt
      - name: Scrape data
        run: python3 scraper.py
      - name: Git commit
        run: |
          git add .
          git config --local user.email "action@github.com"
          git config --local user.name "GitHub Action"
          timestamp=$(date -u +%F)
          git commit -m "Latest data: ${timestamp}"
      - name: Git push
        run:
          git push

  • Step 1 in my scrape_datajob uses actions/checkout@v3 to check out the repository's code onto the runner. The with key passes extra inputs to the associated action. I use the with key to pass the input fetch-depth: 0. This instructs actions/checkout@v3 to fetch the history for all branches of the repo.

  • Step 2 uses actions/setup-python@v2 to install Python on the runner. The with key passes the input python-version: "3.11"and states that I want Python 3.11 installed on the runner.

  • Step 3 runs the pip command to install the required dependencies for the scraper.py script.

  • Step 4 uses the pythons command to run scraper.py.

  • Step 5 uses git to add the file changes in the repo to version control. The | symbol indicates that the mapped values to the run key should be interpreted as individual values and run as individual commands.

  • Step 6 uses git to push the changes to GitHub.

My Workflow File

For clarity the full workflow YAML file is included below:

# schedule.yaml

name: Schedule ISSF Scraper
on:
  # Allows you to run this workflow manually from the Actions tab
  workflow_dispatch:
  schedule:
  - cron: "27 09 * * 5"
jobs:
  scrape_data:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout code
        uses: actions/checkout@v3
        with:
          fetch-depth: 0
      - name: Set up Python 3.11
        uses: actions/setup-python@v2
        with:
          python-version: "3.11"
      - name: Install dependencies
        run: pip install -r requirements.txt
      - name: Scrape data
        run: python3 scraper.py
      - name: Git commit
        run: |
          git add .
          git config --local user.email "action@github.com"
          git config --local user.name "GitHub Action"
          timestamp=$(date -u +%F)
          git commit -m "Latest data: ${timestamp}"
      - name: Git push
        run:
          git push

Additional Notes

To allow the scheduled job to run I needed to change the repo settings to allow both read and write permissions. This stackoverflow post solved the issue with the GitHub Action not running as scheduled.

Useful resources

YAML documentation including syntax is available here.

tags: github actions, projects, notes
